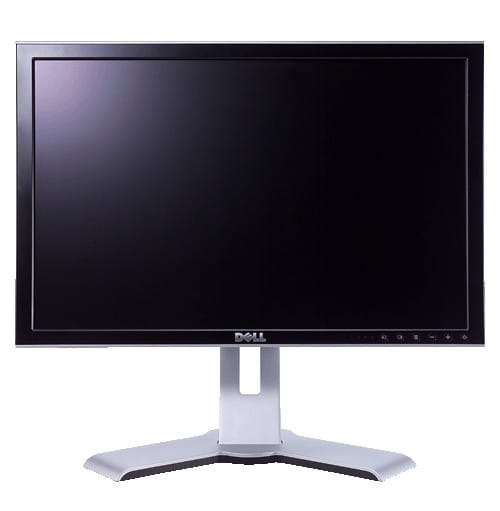

Dell 2007WFP 20'' LCD (16:10, IPS, 1680x1050 DVI, HDCP, Composite, 4xUSB, pivot) - WYSYŁKA TEGO SAMEGO DNIA ! PROMOCJA !
Dostępność:
Jest dostępny!
Cena:
699,00 zł
Cena netto:
568,29 zł
PARAMETRY
WIELKOŚĆ EKRANU:
20" 16:10
INTERFEJS:
D-SUB,DVI,S-VIDEO,VIDEO
TYP MATRYCY:
S-IPS
JASNOŚĆ:
300
CZAS REAKCJI:
16 MS
WYPOSAŻENIE DODATKOWE:
HUB USB , PIVOT
ROZDZIELCZOŚĆ:
1680 X 1050
KONTRAST:
800:1
KĄT WIDZENIA:
178° - 178°
STAN:
PEŁNA A KLASA
MONITORY PO-LEASINGOWE JAK NOWE, BEZ WAD
MONITORY W KOLORZE CZARNYM
GWARANCJA:
12 M-C DOOR TO DOOR
1
Input indicators
2
Input Source Select
3 PIP (Picture In Picture) / PBP (Picture By Picture) Select
4
OSD Menu / Select
5
Down (-)
6
Up (+)
7
Power button (with power light indicator)

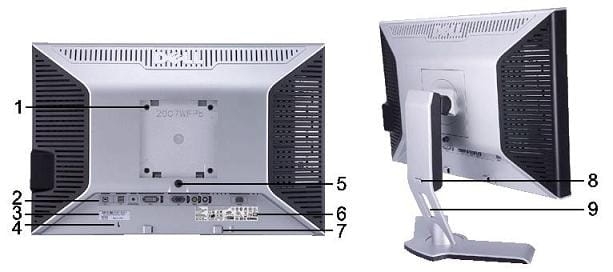

1
VESA mounting holes (100mm)
(Behind attached base plate)
Use to mount the monitor.
2
Connectors label
Indicate the positions and types of connectors.
3
Barcode serial number label
Refer to this label if you need to contact Dell for technical support.
4
Security lock slot
Use a security lock with the slot to help secure your monitor.
5
Monitor Lock/Release Button
Press to release the stand from the monitor.
6
Regulatory rating label
List the regulatory approvals.
7
Dell Soundbar mounting brackets
Attach the optional Dell Soundbar.
8
Lock down/release button
Push the monitor down, press the button to unlock the monitor,
and then lift the monitor to the desired height.
9
Cable management hole
Help organize cables by placing them through the hole.
Right side
Left side
1
USB upstream port
2
USB downstream ports
3
DC power connector for Dell™ Soundbar
4
DVI connector
5
VGA connector
6
Composite video connector
7
S-Video connector
8
AC power cord connector
General
Model number
2007WFP
Screen type
Active matrix - TFT LCD
Screen dimensions
20.1 inches (20.1-inch viewable image size)
Preset display area:
Horizontal
433.4 mm (17.0 inches)
Vertical
270.9 mm (10.7 inches)
Pixel pitch
0.258 mm
Viewing angle
+/- 89° (vertical) typ, +/- 89° (horizontal) typ
Luminance output
300 cd/m ²(typ)
Contrast ratio
800:1 (typ)
Faceplate coating
Antiglare with hard-coating 3H
Backlight
CCFL (6) edgelight system
Response Time
16ms typical
Horizontal scan range
30 kHz to 81 kHz (automatic)
Vertical scan range
56 Hz to 76 Hz, exception 1680 x 1050 at 60 Hz only
Optimal preset resolution
1680 x 1050 at 60 Hz
Highest preset resolution
1680 x 1050 at 60 Hz
Video display capabilities (DVI playback)
480p/576p/720p (Supports HDCP)
Video display capabilities (Composite playback)
NTSC/PAL
Video display capabilities (S-Video playback)
NTSC/PAL
Dell™ guarantees image size and centering for all preset modes listed in the following table.
Display Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (Horizontal/Vertical)
VGA, 720 x 400
31.5
70.1
28.3
-/+
VGA, 640 x 480
31.5
59.9
25.2
-/-
VESA, 640 x 480
37.5
75.0
31.5
-/-
VESA, 800 x 600
37.9
60.3
40.0
+/+
VESA, 800 x 600
46.9
75.0
49.5
+/+
VESA, 1024 x 768
48.4
60.0
65.0
-/-
VESA, 1024 x 768
60.0
75.0
78.8
+/+
VESA, 1152 x 864
67.5
75.0
108.0
+/+
VESA, 1280 x 1024
64.0
60.0
108.0
+/+
VESA, 1280 x 1024
80.0
75.0
135.0
+/+
VESA, 1680 x 1050 (Digital)
64.6
59.9
119
-/+
VESA, 1680 x 1050 (Analog)
65.3
60.0
146.25
-/+
Video input signals
Analog RGB, 0.7 Volts +/-5%, 75 ohm input impedance
Digital DVI-D TMDS, 600mV for each differential line, 50 ohm input impedance
S-video, Y input 1 volt(p-p), C input 0.286 volt(p-p), 75 ohm input impedance
Composite, 1 volt(p-p), 75 ohm input impedance
Synchronization input signals
separate horizontal and vertical,
SOG (Sync on green)
AC input voltage / frequency / current
100 to 240 VAC / 50 or 60 Hz
+ 3 Hz / 2.0A (Max.)
Inrush current
120V: 40A (Max.)
Signal cable type
D-sub: Detachable, Analog, 15pin, shipped attached to the monitor
Dimensions (with stand):
Height (fully extended in portrait mode)
513.0 mm (20.2 inches)
Height (compressed/locked in landscape mode)
332.0 mm (13.1 inches)
Width
472.7 mm (18.6 inches)
Depth
177.7 mm ( 7.0 inches)
Weight
Monitor (Stand and Head)
6.5 Kg (14.3 lb)
Monitor Flat panel only (VESA Mode)
5.0 Kg (11.0 lb)
Weight with packaging
9.0 Kg (19.8 lb)
Temperature:
Operating
5° to 35°C (41° to 95°F)
Non-operating
Storage: 0° to 60°C (32° to 140°F)
Humidity:
Operating
10% to 80% (non-condensing)
Non-operating
Storage: 5% to 90% (non-condensing)
Altitude:
Operating
3,657.6 m (12,000 ft) max
Non-operating
12,192 m (40,000 ft) max
Thermal dissipation
256.0 BTU/hour (maximum)
If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is referred to as 'Power Save Mode'*. If activity from keyboard, mouse or other input devices is detected by the computer, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving feature:
VESA Modes
Horizontal Sync
Vertical Sync
Video
Power Indicator
Power Consumption
Normal operation
Active
Active
Active
Green
75W (maximum)*
Active-off mode
Inactive
Inactive
Blanked
Amber
Less than 2 W
Switch off
-
-
-
Off
Less than 1 W (at 230 V)
* With Audio + USB
This monitor is ENERGY STAR ®-compliant as well as TCO '99/ TCO '03 power management compatible.
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
VGA Connector
pin Side of the Co nnected Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
4
GND
5
Self-test
6
GND-R
7
GND-G
8
GND-B
9
Computer 5V/3.3V
10
GND-sync
11
GND
12
DDC data
13
H-sync
14
V-sync
15
DDC clock
DVI Connector
-
pin Side of th
e C
o nnected Signal Cable
1
TMDS RX2-
2
TMDS RX2+
3
TMDS Ground
4
Floating
5
Floating
6
DDC Clock
7
DDC Data
8
Floating
9
TMDS RX1-
10
TMDS RX1+
11
TMDS Ground
12
Floating
13
Floating
14
+5V / +3.3V power
15
Self test
16
Hot Plug Detect
17
TMDS RX0-
18
TMDS RX0+
19
TMDS Ground
20
Floating
21
Floating
22
TMDS Ground
23
TMDS Clock+
24
TMDS Clock-
S-video Connector
pin Side of the C
o nnected Signal Cable (Cable not included)
1
GND
2
GND
3
LUMA
4
CHROMA
5
GND
Composite
V
ideo Connector
Pin Number
1-
p in Side of the Connected Signal Cable (cable not included)
1
LUMA COMPOSITE CHROMA
This monitor supports High-Speed Certified USB 2.0 interface.
Data Rate
Power Consumption
High speed
480 Mbps
2.5W (Max., each port)
Full speed
12 Mbps
2.5W (Max., each port)
Low speed
1.5 Mbps
2.5W (Max., each port)
USB Upstream
C
onnector
1
